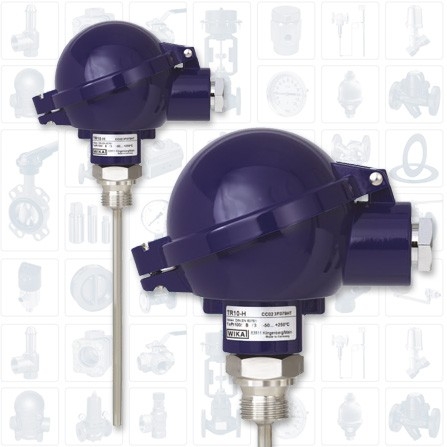

Thermometer Type TR10-H

Pt100 resistance thermometer, without protection tube

directly mounting (in the process), connection head „BSZ“, measuring cell hard coded
process connection G ½“ B (DIN ISO 228), cable connection M20 × 1,5

for applications with messuring sensor inside the prosess / medium
for all applications without chemically-aggressive media and without abrasion

approval / certification (partly for an additional charge):
EG-construction certificate for predection „intrinsically safe“ Ex i
2.2-factory certification; 3.1-acceptance test certificate; DKD-/DAkkS-calibration certificate
ATEX 94/9/EG for gases and dusts (also NAMUR NE24 available)
IECEx; NEPSI; GOST-R; KOSHA; PESO (CCOE)

Standard (deviations on request):

Measuring cell: pt100 thinfilm precision resistor; temperature: -50 °C ... 500 °C; switch desingn: 1 × double wire cable (bifilar) accuracy class: B (DIN EN 60751)
Sensor: CrNi-steel 1.4571 (316Ti); length: 100 mm; diameter: ø 6 mm
Process connection: male thread: G ½“ B, 1.4571 (316Ti); length: 13 mm; double-threaded end-nipples for direct mounting
Head: BSZ, aluminium, ballshape, flap cap; ambient temperature: 120 °C; ceramic plug-in socket
Predection: IP65
Optional: head with digital display
Variant: switch desingn: 1 × three wire cable with 10 m cable
