Ball Valve N2 Standard 3-pcs.

Kategorie: Kugelhähne
Hersteller: StarLine

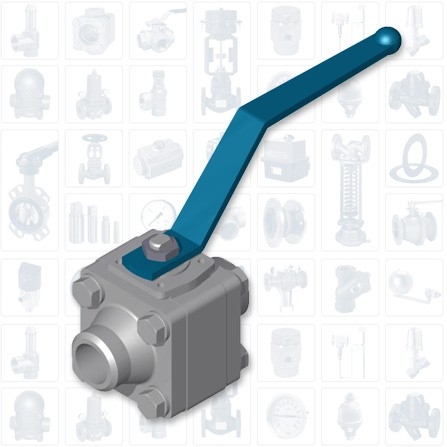

Ball Valve N2 Standard

3-pcs. ball valve – steel / stainless steel

full / reduced bore, blow-out proofe stem, soft sealing
mounting flange in accordance with DIN ISO 5211, threaded ends or butt weld ends

antistatic desingn
manufactured in accordance with ASME B 16.34, ASME B 31.1, BS 5351

Approval / certification (partly for an additional charge):
3.1 B certificate in accordance with EN 10204
ATEX 94/9/EG, Ex IM2 / II 2GD
PED 97/23/EC, CE 97/23/CE Mod. H Kat. III

N. diameter: full bore: DN08 ... DN40; reduced bore: DN15 ... DN50
N. pressure: PN16 ... PN100 (ANSI class 150 ... class 800)
Body: steel: 1.0432 (ASTM A105); stainless steel: 1.4404 (ASTM A182 F316)
Ball: stainless steel 1.4401 (AISI 316)
Gasket: PTFE, more on request
Temperature: -100 °C ... +260 °C
Face-to-face: see table, special length on request
Optional: actuator

Connection variants (more on request):

  • Female thread cylindrical in accordance with DIN EN ISO 228-1 D
  • Female thread tapered in accordance with ISO 7/1 I
  • Female thread NPT in accordance with ANSI B1 20.1 A
  • Butt weld ends S
  • Welding socket
